🔳 CosterGraphics/Systems/OutlineSystem/RenderPasses/OutlineColorMaskDepthTestedPass

🏒 Render Passes

🧱 Outline Color Mask Depth Tested Pass

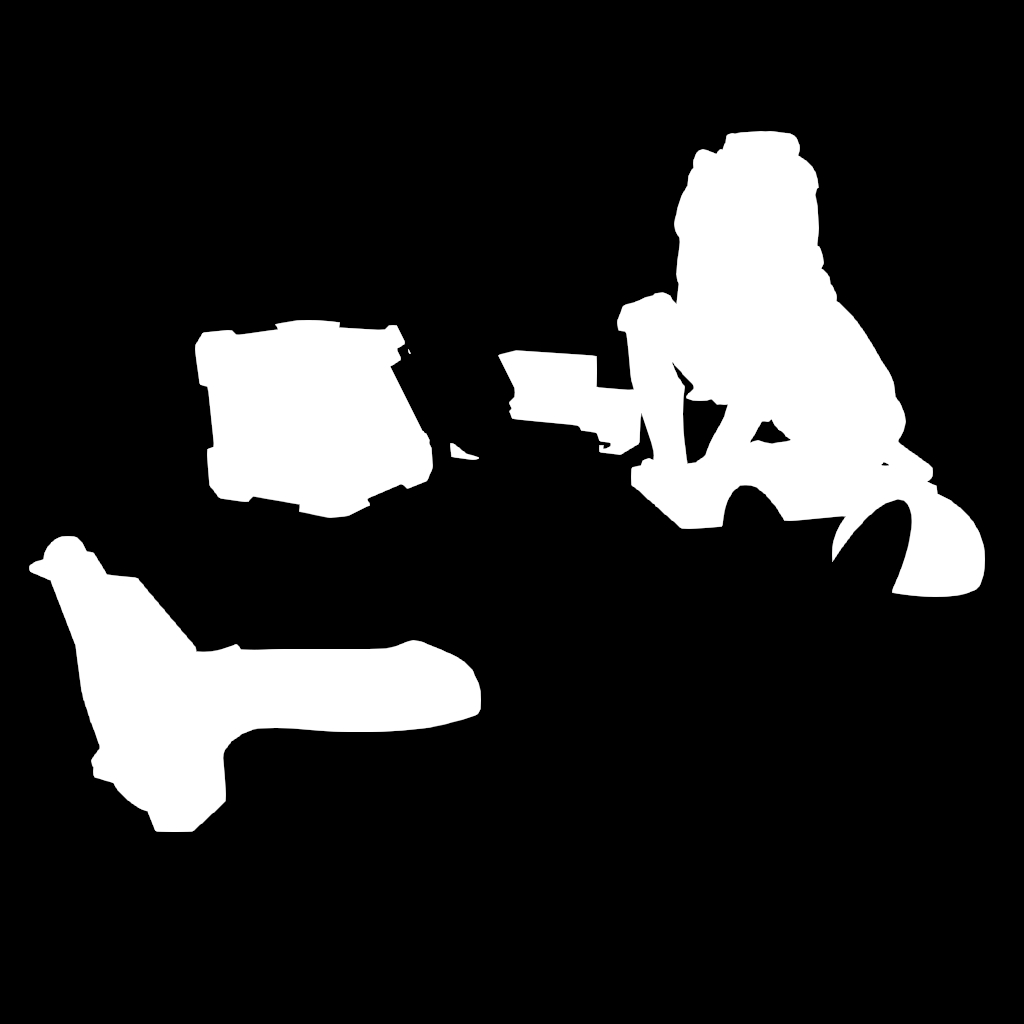

a Binary White on Black Color Texture Mask, Depth Tested against other non-outline geometry, rendered by the
OutlineColorMaskDepthTestedPass render pass.
(for taking the Screen Shot the Outline3D components on the turret in the center and the bunny on the right were disabled)

📖 Description

Renders silhouettes of 🔳Outline3D objects with L EQUAL(Less than or equal to) depth testing enabled in the mask shader causing outlines only to appear where objects are visible (not occluded by other non-Outline3D geometry).
This mask answers the binary question of where 🔳Outline3D geometry exists not hidden behind other geometry. Can be used in combination with the non-depth tested Texture2D_OutlineColorTextureMask to toggle between always-visible/see-trough or depth-tested/hidden-behind other geometry outlines, or to generate outlines with a different color for the hidden and visible parts.

🔧 How It Works

  • Inputs: 🔳Outline3D objects and camera depth buffer.
  • Process: Draws objects with L Equal depth testing and small depth bias.
  • Outputs: Texture2D_OutlineColorTextureMaskDepthTested (R8_UNorm format).
  • Code Example:
// From OutlineColorMaskDepthTestedPass.RecordRenderGraph
UniversalResourceData resourceData = frameContext.Get<UniversalResourceData>();
TextureDesc colorTextureDesc = resourceData.activeColorTexture.GetDescriptor(renderGraph);
    colorTextureDesc.name        = "Texture2D_OutlineColorTextureMaskDepthTested";
    colorTextureDesc.colorFormat = GraphicsFormat.R8_UNorm;
TextureHandle outlineColorTextureMaskDepthTested = renderGraph.CreateTexture(colorTextureDesc);
builder.SetRenderAttachment(outlineColorTextureMaskDepthTested, 0, AccessFlags.Write);

🔗 Requirements

  • Material: outlineColorMaskDepthTestedMaterial.
  • Shader: Simple-Msk-ColorTextureMaskDepthTested-Default.shadergraph
  • URP Settings: Depth buffer enabled.
  • Dependencies: Requires Color Mask Pass.

⭐ Tier Usage

  • Available in: ⭐Simple, ⭐⭐Basic, ⭐⭐⭐Advanced, ⭐⭐⭐⭐Pro.
  • Conditional: Runs if Composite Shader has _OutlineColorTextureMaskDepthTested Texture2D property.

🔫 Troubleshooting

  • Issue: Mask has gaps/z-fighting issues with 🔳Outline3D geometry.
    • Fix: Increase depth bias in shader (cmd.SetGlobalDepthBias(-0.2f, -0.2f)).

🏎️ Performance

  • Slightly more expensive than the non-depth tested color mask.

See Render Passes Overview.
